Compact Aseptic Sampling Valves	Pipe Take Off Aseptic Sampling Valves
SIP Valves	Pipe Take Off Aseptic Sampling Unit

Characteristics for Aseptic Sampling Valve
Designed for sterile sampling of liquids on pharmaceutical and High-Purity products.

→ Radial diaphragm with extremely compact design. Diaphragm closes at the inlet seat of the product port connection, eliminating the dead leg.
→ Engineered for Aseptic and High Purity Applications.
→ PTFE or Silicone and AISI 316L without asymptotic seals.
→ All versions are fully autoclavable. Removable handle available for valves equipped with SIP connection.
→ Documentation: Laser marking for traceability and validation processes. Material 3.1 certificates, FDA or USP, internal surface finishing check as standard.
→ Int. finishing: Ra ≤ 0,4 μm
→ Ext. finishing: Ra ≤ 0,8 μm Mirror Polished
→ Max Working Conditions: 8 bar (120 psi) and 150°C (300°F)
→ Gaskets: FDA approved SILICONE or USP CLASS VI – 121° PTFE
→ Installation: Horizontal installation recommended.

Inline 180° O-Ring Sampling Valves	Inline 30° O-Ring Sampling Valves
Inline 180° Needle Sampling Valves

Characteristics for Inline Sampling Valves
Inline sanitary sampling valves are designed for sampling of liquids on pharmaceutical, chemical, F&B and cosmetics products.
It’s special design prevents deposits of particles in correspondence of the sampling hole, the valve takes the sample from the middle of the line where is installed, avoiding alteration. Used for chemical and microbiological analysis.

→ Documentation: Laser marking for traceability and validation processes. Material 3.1 certificates, FDA or USP, internal surface finishing check as standard.
→ Int. finishing: Ra ≤ 0,4 μm
→ Ext. finishing: Ra ≤ 0,8 μm Mirror Polished
→ Max Working Conditions: 12 bar (170 psi) and 150°C (300°F)
→ Installation: Check correct flow direction during assembly.
→ 5° upward installation recommended.



Characteristics for Side Sampling Valves
Designed for sampling of liquids on pharmaceutical, chemical, F&B and cosmetics products. O-Ring closing system.

→ Documentation: Laser marking for traceability and validation processes. Material 3.1 certificates, FDA or USP, internal surface finishing check as standard.
→ Int. finishing: Ra ≤ 0,4 μm
→ Ext. finishing: Ra ≤ 0,8 μm Mirror Polished
→ Max Working Conditions: 12 bar (170 psi) and 150°C (300°F)
→ Installation: Horizontal installation recommended.

90° O-Ring Sampling Valves	30° O-Ring Sampling Valves	180° O-Ring Sampling Valves	Ingold O-Ring Sampling Valves
90° Needle Sampling Valves Gas Threaded	90° Needle Sampling Valves	180° Needle Sampling Valves Gas Threaded	180° Needle Sampling Valves

Powder Sampling Valve & Systems

Designed for sterile sampling of liquids on pharmaceutical and High-Purity products.

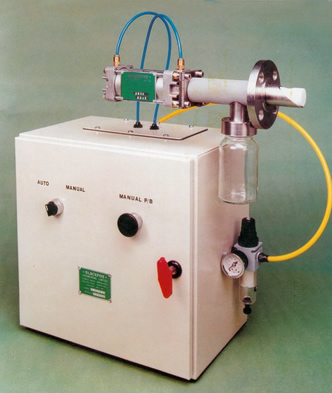

Low cost very simple Powder Sampling Valves designed to sample free flowing powders, granules and flakes from vessels, hoppers and trunking in a safe manner. These can be oered in an automatic pneumatic control box or a simple push button pneumatic manual sampling box.

All valves and control boxes are standard design but made to order and several sizes available ranging from 5 ml to 40 ml per operation. The automatic control boxes are designed to take a small sample on a frequent basis to give a composite sample into a bottle over a day’s operation. Valves and controls can be installed in hazardous areas.
