Sealing - Gaskets & O-Ring

Steam-Flon Gaskets ( PTFE + SS316L)Download
Overview
  • Steam-Flon Gaskets ( PTFE + SS316L)

    Komo can to provide the material Steam-Flon® for sanitary gaskets and some other innovative products. This material is a unique blend of non-pigmented PTFE and 316L stainless steel powder. The mechanical properties of this compound are very interesting because it virtually eliminates the cold flow problems we experience with, for example, virgin PTFE gaskets.

    Cold flow is the term we use for the movement of plastic under permanent load/stress, a state that is used with static seals. Cold flow increases at elevated temperatures. Material of the gasket is slowly moving towards the inside of the fitting and creates a beat. This beat leads to flow restriction and is a potential area for particles/bacterial entrapment. The Steam-Flon® material takes the cold flow out of the equation, creating a very stable seal with no leaks even at large temperature fluctuations.

Material
Standards
Material: PTFE + SS316L
Temperature range: -212°C to 288°C

Colour: Brownish





We provide sanitary gaskets in all standards such as:
★ DIN32676 (Series A)
★ ISO1127 (DIN32676 Series B)
★ ASME BPE (DIN32676 Series C)
★ ASME BPE Category I & II ( lipped & unlipped)
★ ISO2852
★ SMS3019
★ BS4285
★ and etc.

Seal_Gaskets_ASME BPE_DIN32676_ISO2852_BS4825_SMS3019_SMS1149_DIN11864_DIN11851_DIN11853_Sanitary Clamp ASME BPE, DIN 32676, ISO1127, BS 4285, ISO 2852, SMS 3017_卡盘组件
Approval Certification

★ FDA CFR 177.1550
★ FDA CFR 177.2600
★ USP Class VI-121°C testing Part 88
★ USP testing Part 87
★ USP 41 Cytotoxicity <87>
★ USP testing Part 661
★ USP testing Part 381
★ EP 3.1.9 A European Pharmacopoeia
★ EC1935/2004 (EC10/2011)
★ EMEA/410/01 (TSE/BSE free)
★ ADIF
★ ISO 10993-5
★ Cytotoxicity Criteria

Applications

As the name Steam-Flon® suggests this product is the ultimate gasket to be used in steam applications.
★ Pipe lines for pure Steam (SIP)
★ Pipe lines for Cleaning in place liquids (CIP)
★ Pipe line connections with hot oil inside (Food)


Type-III

The Steam-Flon® material is a relatively hard material and can therefore cause problems with sealing when misalignment of pipelines is eminent.

We are therefore introducing a solution to fix the misalignment issue and therewith improve the sealing ability at lower torque levels. The Steam-Flon® Type-III gasket has not one, but two lips: one on either side. This dramatically helps maintenance engineers when installing these gaskets when piping is not properly aligned.

So whereas the Type I unlipped competition gasket allows for large side way movement of the ferrules, making the misalignment even more imminent, the Type-III gasket doesn’t allow for any leeway and therefore creates the ultimate condition for a perfect seal. The new Steam-Flon® Type-III gasket seals 10 bar pressure at approximately half the torque level of standard Type-I seals in larger diameters.


MINI type
Type I 不带法兰边
Type II 带法兰边
Type II 带双法兰边/FKM
Seal_Gaskets_ASME BPE_DIN32676_ISO2852_BS4825_SMS3019_SMS1149_DIN11864_DIN11851_DIN11853_Modify-PTFE-Steam-Flon-PTFE_SS316L-Mini-Gaskets_PTFE_SS316L粉末卡盘垫片 Seal_Gaskets_ASME BPE_DIN32676_ISO2852_BS4825_SMS3019_SMS1149_DIN11864_DIN11851_DIN11853_Modify PTFE Steam-Flon PTFE_SS316L Type I Gaskets_PTFE_SS316L粉末卡盘垫片 Seal_Gaskets_ASME BPE_DIN32676_ISO2852_BS4825_SMS3019_SMS1149_DIN11864_DIN11851_DIN11853_Modify PTFE Steam-Flon PTFE_SS316L Type II Gaskets_PTFE_SS316L粉末卡盘垫片 Seal_Gaskets_ASME BPE_DIN32676_ISO2852_BS4825_SMS3019_SMS1149_DIN11864_DIN11851_DIN11853_Modify-PTFE-Steam-Flon-PTFE_SS316L-Type-III-Gaskets_PTFE_SS316L粉末卡盘垫片

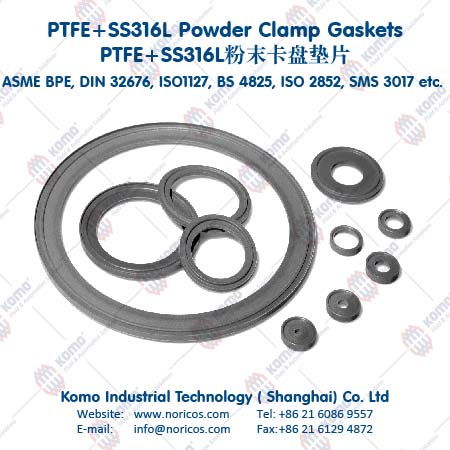

Seal_Gaskets_ASME BPE_DIN32676_ISO2852_BS4825_SMS3019_SMS1149_DIN11864_DIN11851_DIN11853_Sanitary Steam-Flon PTFE_SS316 Gaskets_PTFE_SS316L粉末_卫生级_无菌卡盘垫片


Recommended Torque
The Steam-Flon® gasket lasts longer if the correct torque is applied. Over-compression is disastrous for each gasket material, therefore also for Steam-Flon®. We recommend to use the torque guideline can to contact with Komo, We came to these recommendations after testing our gaskets at 10 bar liquid pressure.
Steam-Flon 垫片 (PTFE_SS316L)/Torque-Knob-3-Nm-卡箍扭矩扳手 Steam-Flon 垫片 (PTFE_SS316L)/Torque-Knob-4-Nm-卡箍扭矩扳手
