Rupture Discs

Integrated Type Rupture DiscsDownload
Overview
  • Integrated Type Rupture Discs

    Full selection of high quality products for sanitary piping systems, Application for food processing, dairy, breweries, pharmaceutical, distilling, baking, canning, cosmetics, biotechnology, and petrochemical industries.

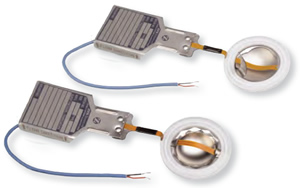

Integral Burst Indication for Metal Bursting Discs

Over pressure or discharge indication for metal bursting disc installations. The BI Integral Burst Indicator is a simple and effective means of indicating when the process media ruptures a disc, Application for food processing, dairy, breweries, pharmaceutical, distilling, baking, canning, cosmetics, biotechnology, and petrochemical industries.

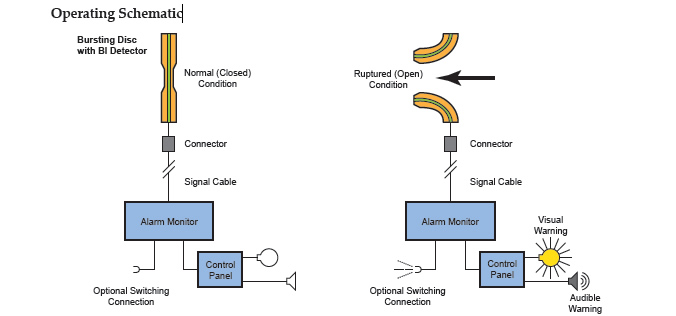

Operation
The BI is integrated into the vent side of the bursting disc assembly. Upon rupture of the disc, the BI alarm circuit is opened.

Features

• Less affected by back pressure from common discharge manifolds.
• Compatible with most flat-seat metal & sanitary bursting discs.
• Cost effective against traditional remote membrane type detectors, especially in larger sizes.
• Reduces stock inventory by incorporating the burst indicator and disc into a single unit.
• Supplied complete with 2 m signal cable.
• Ideal for high purity and corrosion resistance service
• Designed for Non-fragmentation
• Rugged, scoreless design offers higher cycle life when compared to scored reverse acting disks
• Excels in liquid, gas, or two-phase applications
• 0% manufacturing range is standard
• Standard operating ratio of 90% of the low end of the burst tolerance - may be extended to 95% of the minimum burst pressure.
• Self supporting under full vacuum
• Resists product buildup. Only the smooth convex side of the disk is exposed to the process medium
• Installs using industry standard Tri-clamp®/Tri-clover®fittings (NA-Connect mounting also available)
• Standard gasket material
• 3A, FDA, USP, CE and TUV compliance available
