Food & Pharma Gaskets	GYLON BIO-LINE® Style 3504 - Modifiy PTFE	GYLON BIO-LINE® PLUS Style 3522
Ideal for
	★ Food	★ Pharmaceutical
	★ Beverage	★ Bio-Pharmaceutical
	★ Cosmetic	★ Dairy
	★ Pharmaceutical	★ Food
	★ Bio-Pharmaceutical	★ Beverage
	★ Medical	★ Cosmetic
Composition	PTFE with Aluminosilicate microspheres	100% PTFE – free of fillers and pigments
Media Resistance	Almost universal chemical resistance	Almost universal chemical resistance
Approvals and Certificates		★ 3-A 20-27
	★ EC1935/20041 incl. EC10/20111	★ EC1935/2004 inkl. EC10/2011
	★ USP Class VI<87, 88>	★ USP Class VI<87, 88>
	★ Meets FDA 21 CFR177.1550	★ Meets FDA 21 CFR177.1550
	★ NSF 61 Standard2	★ NSF 61 Standard
	★ 62.BfR	★ 62.BfR
	★ USP Part<31, 281, 661>	★ USP Part<31, 281, 661>
	★ ADI free (TSE, BSE)	★ ADI free (TSE, BSE)
	★ EMEA 410/01	★ EMEA 410/01
	★ Phthalate and softener free	★ Phthalate and softener free
	★ TA – Luft incl. Blow-out Proof (Material only)	★ TA – Luft incl. Blow-out Proof (Material only)
	★ BAM	★ BAM
Continuous max. Temperature	260 °C / 500 °F	260 °C / 500 °F
Minimum Temperature	-268 °C / -345 °F	-268 °C / -345 °F
Maximum Pressure	55 bar / 800 psig	55 bar / 800 psig
Key Attributes	★ Traceability optional: Batch number on the gasket	★ Traceability optional: Batch number on the gasket
		★ Hygienic design according to EHEDG
	★ High resistance to almost all chemicals and temperature cycles	★ High resistance to almost all chemicals and temperature cycles
	★ Reduced cold flow and decreased creep relaxation	★ Reduced cold flow and decreased creep relaxation
	★ Dimensionally stable no intrusion or extrusion into the process flow	★ Dimensionally stable no intrusion or extrusion into the process flow
	★ Ideal for SIP & CIP processes	★ Ideal for SIP & CIP processes

Universal sanitary gasket meeting your most critical application requirements.

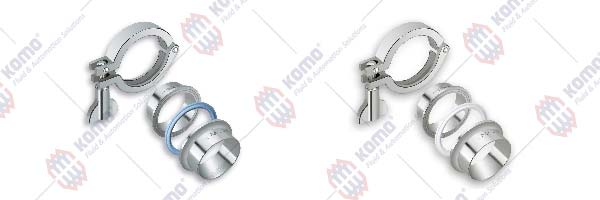

Tri-Clamp connections are the standard connection in the food and pharmaceutical processing industries since many years.
Seals of varying quality and materials are often used regardless of their suitability for constantly increasing operating parameters.

GYLON BIO-PRO® and GYLON BIO-PRO® PLUS deliver best in class performance across all critical factors such as compliance, chemical compatibility, sealability, creep and dimensional stability. The seals offer a safe solution with its modified and restructured PTFE material, preformed and stress controlled, for all Tri-Clamp standards. It is dimensionally stable and resists intrusion into the pipe bore. It can be safely used with all cleaning, neutralizing and sterilizing media, including steam, and for all standard process temperatures. This next generation sanitary gaskets ensure ease of installation and long term operational integrity in the most challenging and critical applications.

Seals offer high stability and a specific elasticity.
The ideal seal for aseptic flange connection in accordance with DIN 11853 and DIN 11864.

GYLON BIO-ASEPT® and GYLON BIO-ASEPT® PLUS seals offer high stability and a specific elasticity. The seals are pre-formed and stress controlled to provide a solid seal when assembled in the piping systems. Hence to advanced materials and well adjusted seal geometries, which adapt to the flange design, a save operation on production site is ensured.

Quality PTFE seals for the pharmaceutical and food processing industry.

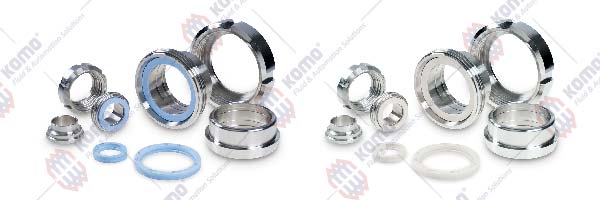

The ideal seal for dairy screw couplings in accordance with DIN 11851 and SMS 1149. Couplings were originally manufactured for fluid foods, and have now established themselves as the most common fastener in the entire fluid foods industry.

GYLON BIO-ECO® and GYLON BIO-ECO®PLUS are preformed gaskets manufactured to seal flange connections according to DIN 11851 and SMS 1149. The necessity for adequate sealing stress and simultaneous recovery makes GYLON BIO-ECO® and GYLON BIO-ECO® PLUS the ideal solution for couplings in accordance with DIN 11851 and SMS 1149. All of the disadvantages associated with current elastomeric seals regarding temperature, chemical resistance and re-usability are eliminated by the modified and restructured PTFE materials.

Standard connection for quick coupling in the food and chemical industry.

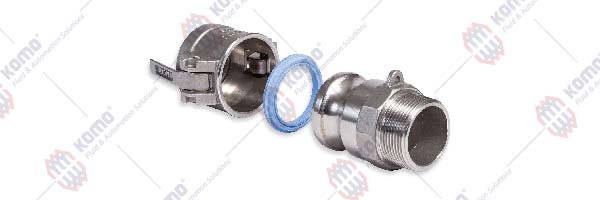

Gaskets for Camlock couplings according to DIN EN 14420-7 and US-MIL-norm (MIL-C-27487) for the food and chemical industry.

Camlock connections are the standard connection for quick coupling in the food industry as well as the chemical industry. GYLON BIO-LOK® is made of highly compressible and flexible material GYLON® Style 3504. The seals offer a high stability and provides a solid seal when assembled.
