Valves

Safety & Relief ValvesDownload
Overview
  • Safety & Relief Valves

    Valves for safeguarding against impermissible overpressure or for discharging excess volumetric or mass flows from pressure vessels and pipelines in the fields of food and pharmacy sanitary sectors and Oil & Gas production, maritime engineering etc.

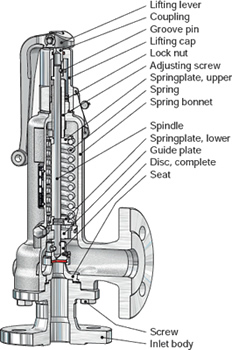

Spring-loaded safety valves can be used as fittings with a safety function in pipelines and on pressure vessels.


If the pressure before the safety valve reaches the set opening pressure, the valve reacts. Depending on the pressure increase, a small amount of the medium will be discharged initially. If the pressure increases further, the valve opens and discharges more medium.

Different pressure increase curves are permissible, depending on the medium (compressible or incompressible) and the type of valve (normal or full-stroke safety valve).


If the pressure before the valve sinks below the opening pressure, the valve begins to close. Different pressure decrease curves (closing pressures) are permissible, depending on the medium.

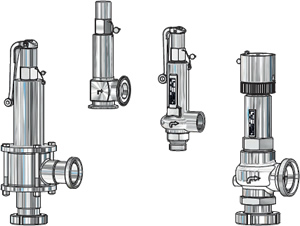

Safety and pressure relief valves for food and pharmacy technique

Valves for safeguarding pressure vessels and pipelines in the food and pharmacy sectors.


Nominal pressures : PN 1.6 to PN 1100
Size : DN 8 to DN 100,special customized size requirements
Process connections : normal commercial thread, screw, clamp or flange connections, All aseptic connections
Materials : Stainless Steel1.4301, 1.4571, 1.4404, 1.4435, And other special materials that can be customized
Sealing Materials :EPDM, PTFE, SILICON, FKM, FFKM etc. as well as elastomer and thermo plastic element seals, compliance FDA & USP Class VI
Surface Polished :Mechanical or electrochemical polished surface finishing max. Ra≤0.25um for valve interior and external
Control Type : Spring-loaded / pneumatic
Setting Pressure : -0.05 bars to max. 73 bars
Option : Sensor signal output
Flow mediums : gases, steam and liquids

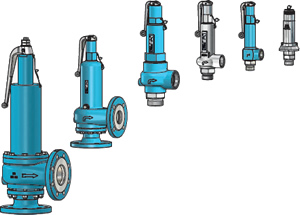

Safety and pressure relief valves for other traditional industry

Valves for safeguarding against impermissible overpressure or for discharging excess volumetric or mass flows from pressure vessels and pipelines in the fields of industrial mechanical engineering, natural gas and oil production, maritime engineering and transport containers.

Nominal pressures : PN 1.6 to PN 1100
Size : DN 8 to DN 100,special customized size requirements
Process connections : normal commercial thread, screw, clamp or flange connections
Materials : Stainless steel, steel, brass, and other special materials that can be customized
Sealing Materials :EPDM, PTFE, SILICON, FKM, FFKM etc. as well as elastomer and thermo plastic element seals
Control Type : Spring-loaded / pneumatic
Setting Pressure : -0.05 bars to max. 1100 bars
Option : Sensor signal output
Flow mediums : gases, steam and liquids

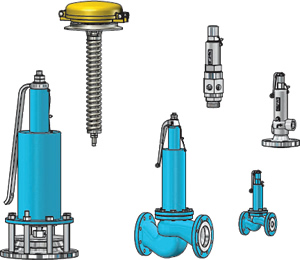

Additional designs

Valves, e.g. free-blowing or in straight form for safeguarding against impermissible overpressure or for discharging excess volumetric or mass flows from pressure vessels and pipelines.



Nominal pressures : PN 1.6 to PN 1100
Size : DN 8 to DN 100,special customized size requirements
Process connections : normal commercial thread, screw, clamp or flange connections
Materials : Stainless steel, steel, brass, and other special materials that can be customized
Sealing Materials :EPDM, PTFE, SILICON, FKM, FFKM etc. as well as elastomer and thermo plastic element seals
Control Type : Spring-loaded / pneumatic
Setting Pressure : -0.05 bars to max. 1100 bars
Option : Sensor signal output
Flow mediums : gases, steam and liquids

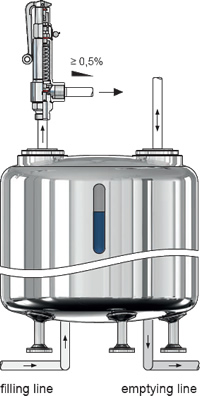

Safety & Relief Valves Mounting and Application
