Pumps

Sealless Magnetic Drive PumpsDownload
Overview
  • Sealless Magnetic Drive Pumps

    The sealless magnetic drive pumps designed to handle particularly sensitive and hazardous substances in chemical and pharmaceutical manufacturing, also ideally suited for sterile biotech processes in the pharmaceutical and food industries.

Komo offer stainless steel magnetic drive centrifugal pumps featuring a unique pump design unparalleled worldwide. With their special construction using an inverted drive configuration, they require no plain bearing carrier. This makes Komo the market leader in magnetic drive pumps for Food & Beverage, Pharmacy sanitary industry and Chemical and Petrochemical, Oil & Gas, Water Management and Power Generation etc. other traditional industry across in the world.

The sealless magnetic drive pump has been engineered especially for sterile fluid handling in the pharmaceutical, biotechnology and food industries.

As has no shaft seal, microorganisms cannot penetrate into the pump interior. Torque is transmitted by an inverted magnetic drive coupling. With its special design, the MKP-Bio does not require a plain bearing carrier. Optimum lubrication and cooling of the single, centrally located impeller bearing assembly with the process fluid gives the pump excellent running characteristics. The impeller rotates stably about a stationary axis on the gyroscopic principle, maintaining a perfect hydraulic balance. This minimises bearing loads, increasing the reliability of operation.

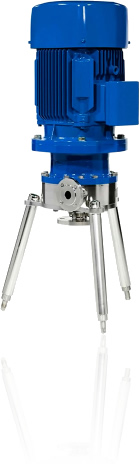

Magnetic Drive Centrifugal Pump for Sterile Processes
→ Designed to EHEDG recommendations
Conform 3-A Sanitary Standards, EHEDG, VDMA, FDA 21 CFR §177
→ Sterile, no dead areas, CIP- and SIP-able
→ Wetted parts: surface finish Ra ≤0.8, internal corners rounded with radius of R3, surfaces inclined >3°
→ Connection: DIN 11864, DIN 11850, EN 1092-1, SüDMO, NEUMO, BBS, ASME BPE (Tri-Clamp)
→ Compact design
→ Vertical configuration, fully self-draining through the suction port (no flush, drain or vent connections)
→ Available in various grades of stainless steel, nickel-base alloys or titanium and with appropriate bearing materials to suit the application


Komo offer stainless steel sealless magnetic drive pumps are ideal to meet the stringent requirements of chemical processing and a multitude of other industries. These highly advanced and extremely energy efficient pumps are built to handle a huge variety of fluids reliably and absolutely safely.

Also designed for pumping solids-laden and low-boiling liquids, they can handle suspended solids in concentrations up to 30 per cent with a particle size up to 1 millimetre, depending on the pumped medium.

Their intelligent modular system facilitates assembly and minimises the costs of spare parts, maintenance and servicing.

Stainless Steel Magnetic Drive Chemical Process Pump
→ Pump dimensions to DIN EN ISO 2858
→ Conform FDA 21 CFR §177
→ Compact design with virtually no dead areas, allowing easy and efficient heating
→ Horizontal and vertical configurations available
→ Hydraulically balanced impeller for minimum bearing loads
→ Internal and external bearing lubrication and flush options
→ Solids handling capability up to concentrations of 30% and a particle size of 1 mm depending on the pumped fluid
→ Lower installation costs due to a single heating jacket for heating
→ Excellent heat distribution reducing temperature differences and preventing cold zones
→ Fast heat-up time assured by high heat transfer efficiency and heating energy delivered directly into the fluid chamber
→ Modular system consisting of just a few components, easy assembly


Stainless Steel Self-Priming Magnetic Drive Chemical Process Pump
→ Pump dimensions to DIN EN ISO 2858, ANSI/ASME B73.3
→ Compact design with virtually no dead areas, allowing easy and efficient heating
→ Hydraulically balanced impeller for minimum bearing loads
→ Internal and external bearing lubrication and flush options
→ Integral priming chamber for high reliability and safety
→ Solids handling capability up to concentrations of 30% and a particle size of 1 mm depending on the pumped fluid
→ Self-priming with suction lift up to 8.5 m
→ Ideal for efficiently emptying tanks that have no bottom drain
→ Available with a double-walled jacketed discharge pipe
→ Modular system consisting of just a few components, easy assembly


Stainless Steel Magnetic Drive In-Line Chemical Process Pump
→ Pump body constructed from non-porous bar stock
→ Ingeniously simple pump design with just a few, robust components
→ Central bearing assembly eliminating the need for a plain bearing carrier
→ Use of a single product-lubricated bearing that overcomes the common weak point of conventional pumps
→ Sophisticated bearing lubrication for extra capability to handle difficult applications and high solids concentrations in fluids
→ Vast choice of materials of construction ranging from high-alloy stainless steel, nickel and nickel-base alloys to other special alloys
→ In-line installation for maximum space saving
→ Simple and low-cost installation


Stainless Steel Magnetic Drive Chemical Process Sump Pump
→ Magnetic drive sump pump with a column length up to 4 m
→ Ideal for emptying tanks that have no bottom drain
→ Combinable with an injector to provide a tank unloading system for emptying large tanks
→ Ingeniously simple pump design consisting of few components
→ Central bearing assembly allowing compact construction and eliminating the need for a plain bearing carrier
→ Use of a single product-lubricated bearing that overcomes the common weak point of conventional pumps
→ Sophisticated bearing lubrication for extra capability to handle difficult applications and high solids concentrations in fluids
→ Lower energy consumption when fitted with a non-metallic containment shell to eliminate eddy current losses
→ Vast choice of materials of construction ranging from high-alloy stainless steel, nickel and nickel-base alloys to other special alloys


PFA Lined Magnetic Drive Centrifugal Pumps

With their sealless design, the magnetic drive pumps are built to meet the complex requirements of the chemical and pharmaceutical industries, even at high temperatures.
Their casing has a thick, heavy-duty, corrosion- and permeation-resistant PFA lining positively, mechanically locked into the metal armour, ensuring vacuum resistance. This armour absorbs all mechanical stresses resulting from system pressure or piping nozzle loads.
An intelligent modular system facilitates assembly and minimises the costs of spare parts, maintenance and servicing.

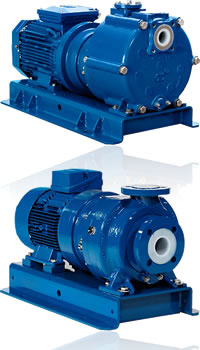

PFA Lined Self-Priming Magnetic Drive Chemical Process Pump
→ Pump dimensions to DIN EN ISO 2858
→ Conform FDA 21 CFR §177
→ Metal casing with a thick vacuum, corrosion- and permeation-resistant PFA lining
→ Bearing assembly made of pure SSiC in a robust design engineered for ceramics
→ PFA lined metal plain bearing carrier maintaining a constant clearance between the impeller and casing, even at high temperatures
→ Plain and thrust bearings secured with polygonal form-fit, self-centring anti-rotation devices
→ Plastic impeller firmly secured to prevent loosening in case of reverse pump rotation
→ One-piece, vacuum-resistant, non-metallic containment shell
→ Open impeller with a metal core for low NPSH
→ Integral priming chamber for high reliability and safety
→ Self-priming with suction lift up to 8.5 m
→ Modular system consisting of few components



PTFE Magnetic Drive Centrifugal Pumps

These highly advanced and extremely energy efficient magnetic drive pumps are built to handle a huge variety of corrosive fluids reliably and absolutely safely, especially in applications requiring resistance to permeation.

Use of carbon-filled PTFE prevents electrostatic charging on the casing. Each of these pumps features a different type of impeller to suit a wide spectrum of applications.

Solid PTFE Self-Priming Magnetic Drive Chemical Process Side Channel Pump
→ Self-priming with suction lift up to 8.5 m
→ Very robust design
→ Corrosion-resistant, hermetically sealed, for fluids with a gas content up to 25%
→ Pressure rating of PN 10 and vacuum resistance, even at high temperatures
→ Generously dimensioned, rugged plain bearings made of pure SSiC to withstand the highest stresses
→ Axial and radial SSiC bearing assembly for low wear
→ No separate priming tank; the suction line is automatically evacuated by vacuum
→ Insensitive to reverse rotation
→ Reduced energy consumption due to non-metallic containment shell preventing eddy current losses
→ Bump ring preventing damage to the containment shell
→ Available with close-coupled drive, fixed or mobile


Solid PTFE Magnetic Drive Chemical Process Pump
→ Pump dimensions to DIN EN ISO 2858
→ Thick vacuum-, corrosion- and permeation-resistant solid plastic
→ Bearing assembly made of pure SSiC in a robust design engineered for ceramics
→ Closed impeller with a metal core
→ Use of carbon-filled PTFE to prevent electrostatic charging on the casing
→ Available in carbon-filled PTFE, virgin PTFE or PVDF
→ Polygonal form-fit anti-rotation device
→ Impeller firmly secured to prevent loosening in case of reverse pump rotation
→ Non-metallic containment shell to eliminate eddy current losses
